OWALamella - Sedimentation unit

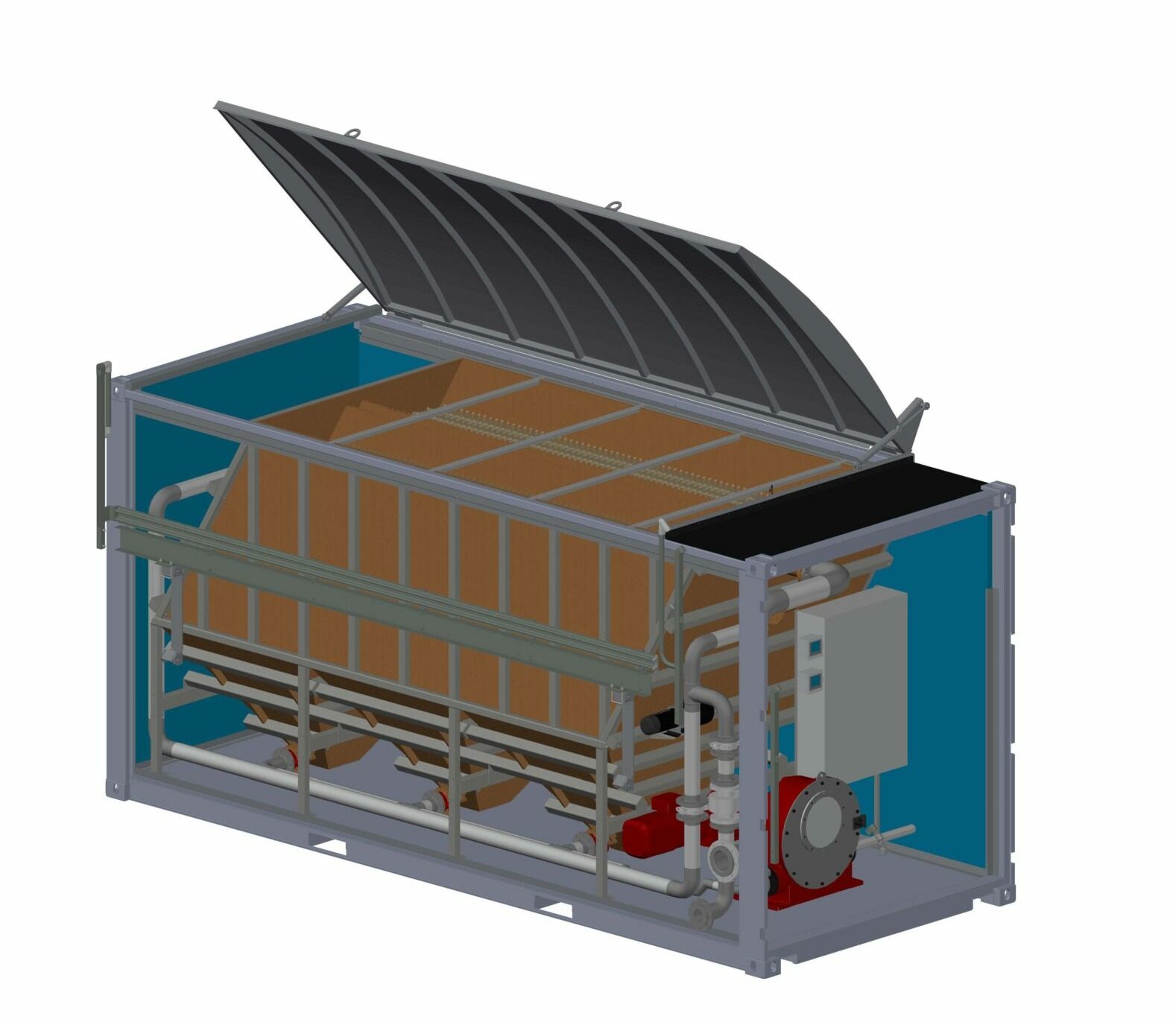

OwaLamella is a solution built in a sea container, available in two different sizes: 20 and 40 feet containers. The sedimentation unit separates solids from the liquid by using gravity instead of flotation. Flocculants can be used to improve solid-liquid separation by collecting smaller particles into settleable flocs.

The sedimentation unit enables the effective separation of solids when the impurities in the treated water are not suitable for a flotation-based method.

The flow capacity of an individual unit is approx. 50 – 400 m3/h, which can be increased by adding more units side by side. The quality of the treated water always determines the final maximum capacity.

Examples by industries:

  • Mining Industry – process and mine waters
  • Mining Industry – valuable side streams
  • Constraction Industry – soil conteining waters

Basic information

Size / Type of container
Size / Type of container

OwaLamella20 I OwaLamella40
Length: 20 feet 6 060 mm I 40 feet 12 192 mm
Widht: 2 440 mm
Height: 2 700 mm

Operation mass
Operation mass

25 000 kg I 50 000 kg

Flow capacity
Flow capacity

5 - 400 m3/h

  • Product group Solids removal
  • Product type Sedimentation unit
  • Series 6002-
  • Transportation weight 5 500 kg I 9 500 kg
  • Manufactured by Owatec Group Oy
  • Made in Finland

Technical information

  • Automation and control panel Allen Bradley or ABB
  • Automatic valve Auma
  • Pipe material PE
  • Pool material PE
  • Lamella material PP
  • Flowmeter 5 – 240 m3/h I 5 – 400 m3/h
  • Inlet connection DN100 flange
  • Outlet connection DN150 flange
  • Sludge pump Flowrox LPP-T50 8 m3/h
  • Turbidity measurement 0-10 000 NTU
  • Pressure measurements for dispersion pump -1-0 bar and 0-10 bar
  • Temperature measurement for dispersion pump Fahrenheit / Celcius
  • Temperature measurement inside the container Fahrenheit / Celcius

Other information

  • pH of the treated water 1–9
  • Temp of the treated water 5–30 °C
  • Ambient temp -20 –30 °C


  • Cost-effective
    Owatec water treatment plant can enable savings of up to 25% per year.
  • Valuable side streams recovery
    Streams containing valuable metals or other substances are recovered to better use, improving the efficiency of the processes.
  • Remote control
    Automation, as well as remote control and monitoring, enable continuous maintenance of optimized processes.
  • Modularity
    Just Plug and Play – wastewater treatment and sludge drying solutions in modular container solutions. Containers are assembled at Tupos in Oulu and are ready for operation right after delivery.

Contact us

Owatec water treatment and sludge dewatering units are always built according to customer needs; therefore, the final outcome can vary. All units can work as an individual solution or as part of a full-scaled water treatment plant. Contact us, and we will introduce the best available solution for you.
